ROS2 常用工具 ​

字数
1627 字
阅读时间
9 分钟

1. TF ​

  • 使用tf命令发布坐标关系

    bash
    ros2 run tf2_ros static_transform_publisher --x 0.1 --y 0.0 --z 0.2 --roll 0.0 --pitch 0.0 --yaw 0.0 --frame-id base_link
	 --child-frame-id base_laser

    static_transform_publisher：静态坐标变换（固定不变的坐标系才使用静态坐标变换，否则应使用动态坐标变换）

    x, y, z：空间坐标值

    R, P, Y：空间旋转值

    --frame-id：父link

    --child-frame-id：子link

  • 使用tf命令计算link间的转换关系

    bash
    ros2 run tf2_ros tf2_echo <link1> <link2>

  • 使用view_frames查看坐标系的连接关系

    bash
    ros2 run tf2_tools view_frames

---
[INFO] [1737509566.070758685] [view_frames]: Listening to tf data for 5.0 seconds...
[INFO] [1737509571.112308082] [view_frames]: Generating graph in frames.pdf file...
[INFO] [1737509571.116881959] [view_frames]: Result:tf2_msgs.srv.FrameGraph_Response(frame_yaml="base_laser: \n  parent: 'base_link'\n  broadcaster: 'default_authority'\n  rate: 10000.000\n  most_recent_transform: 0.000000\n  oldest_transform: 0.000000\n  buffer_length: 0.000\nwall_link: \n  parent: 'base_laser'\n  broadcaster: 'default_authority'\n  rate: 10000.000\n  most_recent_transform: 0.000000\n  oldest_transform: 0.000000\n  buffer_length: 0.000\n")

    该命令会生成一个.gv文件和一个pdf文件

  • 使用Python发布静态TF

    python
    import math
import rclpy
from rclpy.node import Node
from geometry_msgs.msg import TransformStamped
from tf2_ros import StaticTransformBroadcaster
from tf_transformations import quaternion_from_euler

class StaticTFPublisher(Node):
    def __init__(self, node_name):
        super().__init__(node_name)
        self.static_broadcaster = StaticTransformBroadcaster(self)  # 该类需要传入一个node作为参数
        self.pub_static_tf()

    def pub_static_tf(self):
        # 实例化TransformStamped类
        transform = TransformStamped()
        transform.header.stamp = self.get_clock().now().to_msg()
        transform.header.frame_id = "base_link"     # 父link
        transform.child_frame_id = "camera_link"    # 子link

        # xyz平移变换
        transform.transform.translation.x = 0.5
        transform.transform.translation.y = 0.3
        transform.transform.translation.z = 0.6

        # xyzw四元数旋转变换
        q = quaternion_from_euler(math.radians(180), 0, 0)
        transform.transform.rotation.x = q[0]
        transform.transform.rotation.y = q[1]
        transform.transform.rotation.z = q[2]
        transform.transform.rotation.w = q[3]

        self.static_broadcaster.sendTransform(transform)
        self.get_logger().info(f'发布TF: {transform}')

def main():
    rclpy.init()
    node = StaticTFPublisher('static_tf_pub')
    rclpy.spin(node)
    rclpy.shutdown()

    StaticTransformBroadcaster(self)：self参数表示将自身节点对象作为参数

    静态坐标变换只会发布一次，ROS2会保留其数据，订阅者可直接订阅到所需的静态坐标变换数据

  • 使用Python发布动态TF

    python
    import math
import rclpy
from rclpy.node import Node
from geometry_msgs.msg import TransformStamped
from tf2_ros import TransformBroadcaster
from tf_transformations import quaternion_from_euler

class DynamicTFPublisher(Node):
    def __init__(self, node_name):
        super().__init__(node_name)
        self.dynamic_tf_broadcaster = TransformBroadcaster(self)
        # 创建定时器定时发送tf数据
        self.timer = self.create_timer(0.01, self.tf_pub_callback)

    def tf_pub_callback(self):
        transform = TransformStamped()
        transform.header.stamp = self.get_clock().now().to_msg()
        transform.header.frame_id = "camera_link"
        transform.child_frame_id = "bottle_link"

        transform.transform.translation.x = 0.2
        transform.transform.translation.y = 0.3
        transform.transform.translation.z = 0.5

        q = quaternion_from_euler(0, 0, 0)
        transform.transform.rotation.x = q[0]
        transform.transform.rotation.y = q[1]
        transform.transform.rotation.z = q[2]
        transform.transform.rotation.w = q[3]

        self.dynamic_tf_broadcaster.sendTransform(transform)
        self.get_logger().info(f'发布TF: {transform}')


def main():
    rclpy.init()
    node = DynamicTFPublisher('tf_pub')
    rclpy.spin(node)
    rclpy.shutdown()

    动态坐标变换需要持续的发布才有效

  • 使用Python查看TF关系

    python
    import rclpy
from rclpy.node import Node
from tf2_ros import TransformListener, Buffer
from tf_transformations import euler_from_quaternion

class TFLisener(Node):
    def __init__(self, node_name):
        super().__init__(node_name)
        # 缓冲类，用来存放TF数据
        self.buffer = Buffer()
        self.tf_lisener = TransformListener(self.buffer, self)
        self.timer = self.create_timer(1.0, self.get_transform_callback)

    def get_transform_callback(self):
        try:
            result = self.buffer.lookup_transform(
                'base_link',
                'bottle_link',
                rclpy.time.Time(seconds=0.0),
                rclpy.time.Duration(seconds=1.0)
            )
            transform = result.transform
            rotation_euler = euler_from_quaternion([
                transform.rotation.x,
                transform.rotation.y,
                transform.rotation.z,
                transform.rotation.w,
            ])
            self.get_logger().info(f'平移: {transform.translation}, 旋转四元数: {transform.rotation}, 旋转欧拉角: {rotation_euler}')

        except Exception as e:
            self.get_logger().warn(f'获取坐标变换失败，原因: {str(e)}')


def main():
    rclpy.init()
    node = TFLisener('tf_lisener')
    rclpy.spin(node)
    rclpy.shutdown()

2. URDF模型 ​

  • URDF文件标签

    xml
    <?xml version="1.0"?>
<robot name="first_robot">
    <!-- 机器人身体部分 -->
    <link name="base_link">
        <!-- 部件显示描述 -->
        <visual>
            <!-- 偏移和旋转是基于自身几何中心 -->
            <origin xyz="0.0 0.0 0.0" rpy="0.0 0.0 0.0"/>
            <!-- 定义部件形状 -->
            <geometry>
                <cylinder radius="0.12" length="0.1"/>
            </geometry>
            <!-- 定义部件的颜色和材质 -->
            <material name="white">
                <color rgba="1.0 1.0 1.0 0.5"/>
            </material>
        </visual>
    </link>

    <!-- 机器人IMU部件 -->
    <link name="imu_link">
        <!-- 部件显示描述 -->
        <visual>
            <!-- 偏移和旋转是基于自身几何中心 -->
            <origin xyz="0.0 0.0 0.0" rpy="0.0 0.0 0.0"/>
            <!-- 定义部件形状 -->
            <geometry>
                <box size="0.02 0.02 0.02"/>
            </geometry>
            <!-- 定义部件的颜色和材质 -->
            <material name="white">
                <color rgba="0.0 0.0 0.0 0.5"/>
            </material>
        </visual>
    </link>

    <!-- 定义连接机器人身体和IMU的关节 -->
    <joint name="imu_joint" type="fixed">
        <parent link="base_link"/>
        <child link="imu_link"/>
        <origin xyz="0.0 0.0 0.05" rpy="0.0 0.0 0.0"/>
    </joint>

</robot>

  • 可以使用urdf_to_graghviz命令查看转换关系

    bash
    urdf_to_graghviz robot_urdf.urdf robot_urdf

-------------------------
Created file robot_urdf.gv
Created file robot_urdf.pdf

3. 使用Rviz显示URDF模型 ​

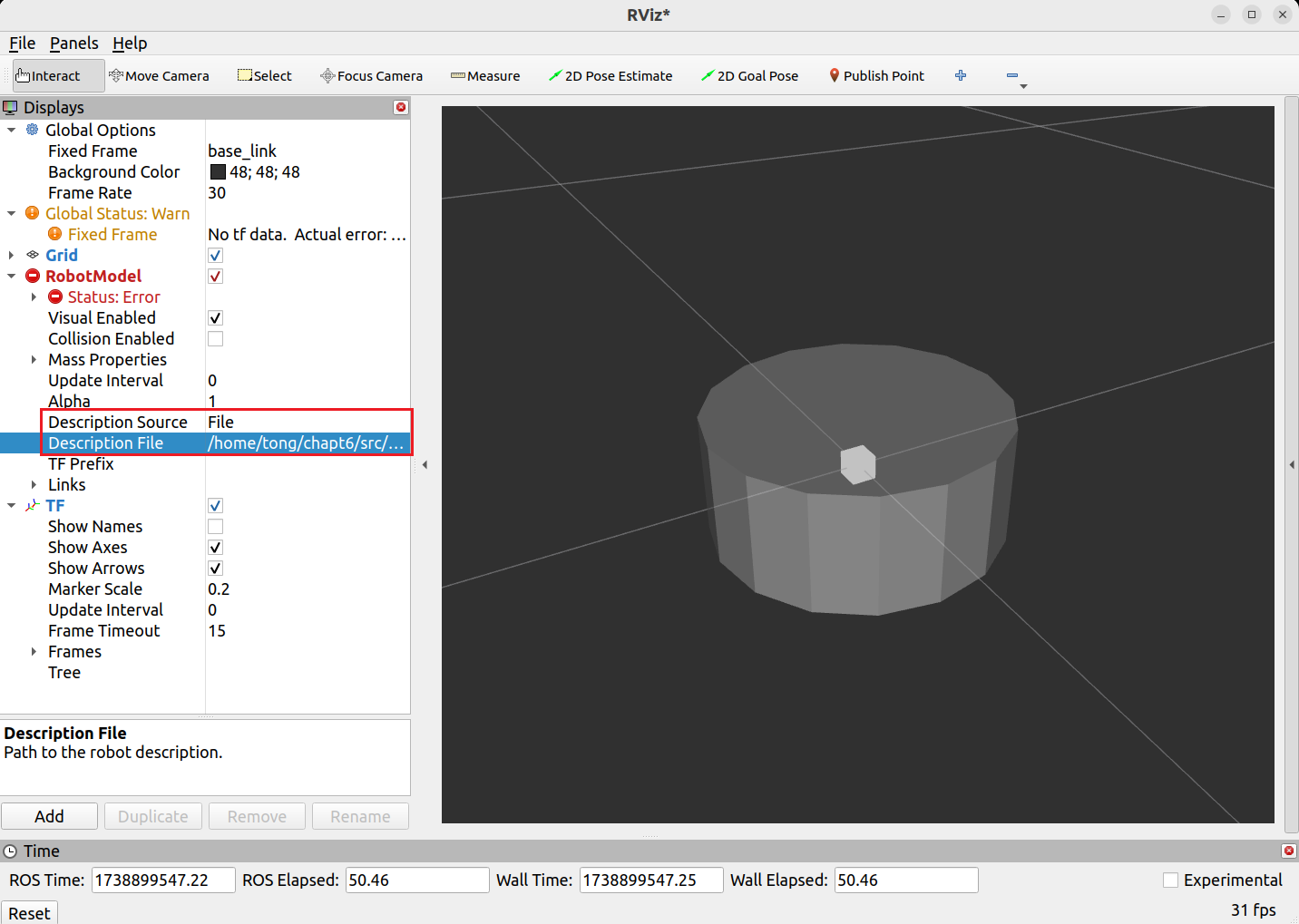

  • 直接使用rviz查看urdf模型

    bash
    rviz2

    • Description Source：选择File
    • Description File：选择urdf文件所在路径
    • Fixed Frame：选择base_link

  • 编写launch文件来查看urdf模型

    • 安装依赖

      bash
      sudo apt install ros-$ROS_DISTRO-robot-state-publisher
sudo apt install ros-$ROS_DISTRO-joint-state-publisher

    • 编写launch文件

      python
      import launch
import launch_ros
from ament_index_python.packages import get_package_share_directory
import launch_ros.parameter_descriptions

def generate_launch_description():
    # 获取默认路径
    urdf_tutorial_path = get_package_share_directory('robot_description')
    default_model_path = urdf_tutorial_path + '/urdf/robot_urdf.urdf'
    default_rviz_config_path = urdf_tutorial_path + '/config/rviz/display_model.rviz'

    # 为launch声明参数
    action_declare_arg_model_path = launch.actions.DeclareLaunchArgument(
        name='model',
        default_value=default_model_path,
        description='URDF的绝对路径'
    )

    # 获取文件内容生成新的参数
    robot_description = launch_ros.parameter_descriptions.ParameterValue(
        launch.substitutions.Command(
            ['cat ', launch.substitutions.LaunchConfiguration('model')]
        ),
        value_type=str
    )

    # 状态发布节点
    robot_state_publisher_node = launch_ros.actions.Node(
        package='robot_state_publisher',
        executable='robot_state_publisher',
        parameters=[{'robot_description': robot_description}]
    )

    # 关节状态发布节点
    joint_state_publisher_node = launch_ros.actions.Node(
        package='joint_state_publisher',
        executable='joint_state_publisher',
    )

    # Rviz节点
    rviz_node = launch_ros.actions.Node(
        package='rviz2',
        executable='rviz2',
        arguments=['d', default_rviz_config_path]
    )

    return launch.LaunchDescription([
        action_declare_arg_model_path,
        joint_state_publisher_node,
        robot_state_publisher_node,
        rviz_node
    ])

    • 在CMakeLists.txt中将urdf和launch文件复制到install目录下

      python
      install(DIRECTORY launch urdf
	DESTINATION share/${PROJECT_NAME}
)

    • 可将Rviz配置保存到功能包的config/rviz目录下，方便launch文件读取

      python
      	...
def generate_launch_description():
	...
	default_rviz_config_path = urdf_tutorial_path + '/config/rviz/display_model.rviz'
	...
	# Rviz节点
	rviz_node = launch_ros.actions.Node(
		package='rviz2',
		executable='rviz2',
		arguments=['-d', default_rviz_config_path]
	)
	...

      修改CMakeLists，将config目录下的内容复制到install目录下，防止运行时找不到配置文件

4. xacro ​

  • 使用xacro简化urdf模型

    • 安装xacro

      xml
      sudo apt install ros-$ROS_DISTRO-xacro

    • xacro宏定义的结构

      xml
      <?xml version="1.0"?>
<robot xmlns:xacro="http://www.ros.org/wiki/xacro" name="first_robot">
    <!-- 声明base_link模块 -->
    <xacro:macro name='base_link' params="radius length">
        <link name="base_link">
            <visual>
                <origin xyz="0.0 0.0 0.0" rpy="0.0 0.0 0.0"/>
                <geometry>
                    <cylinder radius="${radius}" length="${length}"/>
                </geometry>
                <material name="white">
                    <color rgba="1.0 1.0 1.0 0.5"/>
                </material>
            </visual>
        </link>
    </xacro:macro>

    <!-- 声明imu模块 -->
    <xacro:macro name='imu_link' params="imu_name xyz">
        <link name="${imu_name}_link">
            <visual>
                <origin xyz="0.0 0.0 0.0" rpy="0.0 0.0 0.0"/>
                <geometry>
                    <box size="0.02 0.02 0.02"/>
                </geometry>
                <material name="black">
                    <color rgba="0.0 0.0 0.0 0.5"/>
                </material>
            </visual>
        </link>
        <joint name="${imu_name}_joint" type="fixed">
            <parent link="base_link"/>
            <child link="${imu_name}_link"/>
            <origin xyz="${xyz}"/>
        </joint>
    </xacro:macro>

    <!-- 传递参数调用base_link模块 -->
    <xacro:base_link radius='0.1' length='0.12'/>
    <!-- 传递参数调用imu模块 -->
    <xacro:imu_link imu_name='imu_up' xyz='0 0 0.02'/>
    <xacro:imu_link imu_name='imu_down' xyz='0 0 -0.02'/>
</robot>

    • 使用命令将xacro转换为urdf

      xml
      xacro first_robot.urdf.xacro

--------
<?xml version="1.0" ?>
<!-- =================================================================================== -->
<!-- |    This document was autogenerated by xacro from robot_urdf.xacro               | -->
<!-- |    EDITING THIS FILE BY HAND IS NOT RECOMMENDED                                 | -->
<!-- =================================================================================== -->
<robot name="first_robot">
  <link name="base_link">
    <visual>
      <origin rpy="0.0 0.0 0.0" xyz="0.0 0.0 0.0"/>
      <geometry>
        <cylinder length="0.12" radius="0.1"/>
      </geometry>
      <material name="white">
        <color rgba="1.0 1.0 1.0 0.5"/>
      </material>
    </visual>
  </link>
  <link name="imu_up_link">
    <visual>
      <origin rpy="0.0 0.0 0.0" xyz="0.0 0.0 0.0"/>
      <geometry>
        <box size="0.02 0.02 0.02"/>
      </geometry>
      <material name="black">
        <color rgba="0.0 0.0 0.0 0.5"/>
      </material>
    </visual>
  </link>
  <joint name="imu_up_joint" type="fixed">
    <parent link="base_link"/>
    <child link="imu_up_link"/>
    <origin xyz="0 0 0.02"/>
  </joint>
  <link name="imu_down_link">
    <visual>
      <origin rpy="0.0 0.0 0.0" xyz="0.0 0.0 0.0"/>
      <geometry>
        <box size="0.02 0.02 0.02"/>
      </geometry>
      <material name="black">
        <color rgba="0.0 0.0 0.0 0.5"/>
      </material>
    </visual>
  </link>
  <joint name="imu_down_joint" type="fixed">
    <parent link="base_link"/>
    <child link="imu_down_link"/>
    <origin xyz="0 0 -0.02"/>
  </joint>
</robot>

  • 使用launch命令在rviz中显示模型

    python
    def generate_launch_description():
	...
	# 获取文件内容生成新的参数，将cat替换为xacro即可
	robot_description = launch_ros.parameter_descriptions.ParameterValue(
		launch.substitutions.Command(
			['xacro ', launch.substitutions.LaunchConfiguration('model')]
		),
		value_type=str
	)
	...
